Find change points efficiently in penalized linear regression models
Source:R/fastcpd.R
detect_lasso.Rddetect_lasso() and fastcpd.lasso() are wrapper
functions of detect() to find change points in penalized
linear regression models. The function is similar to detect()
except that the data is by default a matrix or data frame with the response
variable as the first column and thus a formula is not required here.
Arguments
- data
A matrix or a data frame with the response variable as the first column.
- ...
Other arguments passed to
detect(), for example,segment_count.
Value
A fastcpd object.
Examples
# \donttest{
if (
requireNamespace("ggplot2", quietly = TRUE) &&
requireNamespace("mvtnorm", quietly = TRUE)
) {
set.seed(1)
n <- 480
p_true <- 5
p <- 50
x <- mvtnorm::rmvnorm(n, rep(0, p), diag(p))
theta_0 <- rbind(
runif(p_true, -5, -2),
runif(p_true, -3, 3),
runif(p_true, 2, 5),
runif(p_true, -5, 5)
)
theta_0 <- cbind(theta_0, matrix(0, ncol = p - p_true, nrow = 4))
y <- c(
x[1:80, ] %*% theta_0[1, ] + rnorm(80, 0, 1),
x[81:200, ] %*% theta_0[2, ] + rnorm(120, 0, 1),
x[201:320, ] %*% theta_0[3, ] + rnorm(120, 0, 1),
x[321:n, ] %*% theta_0[4, ] + rnorm(160, 0, 1)
)
result <- detect_lasso(
cbind(y, x),
multiple_epochs = function(segment_length) if (segment_length < 30) 1 else 0
)
summary(result)

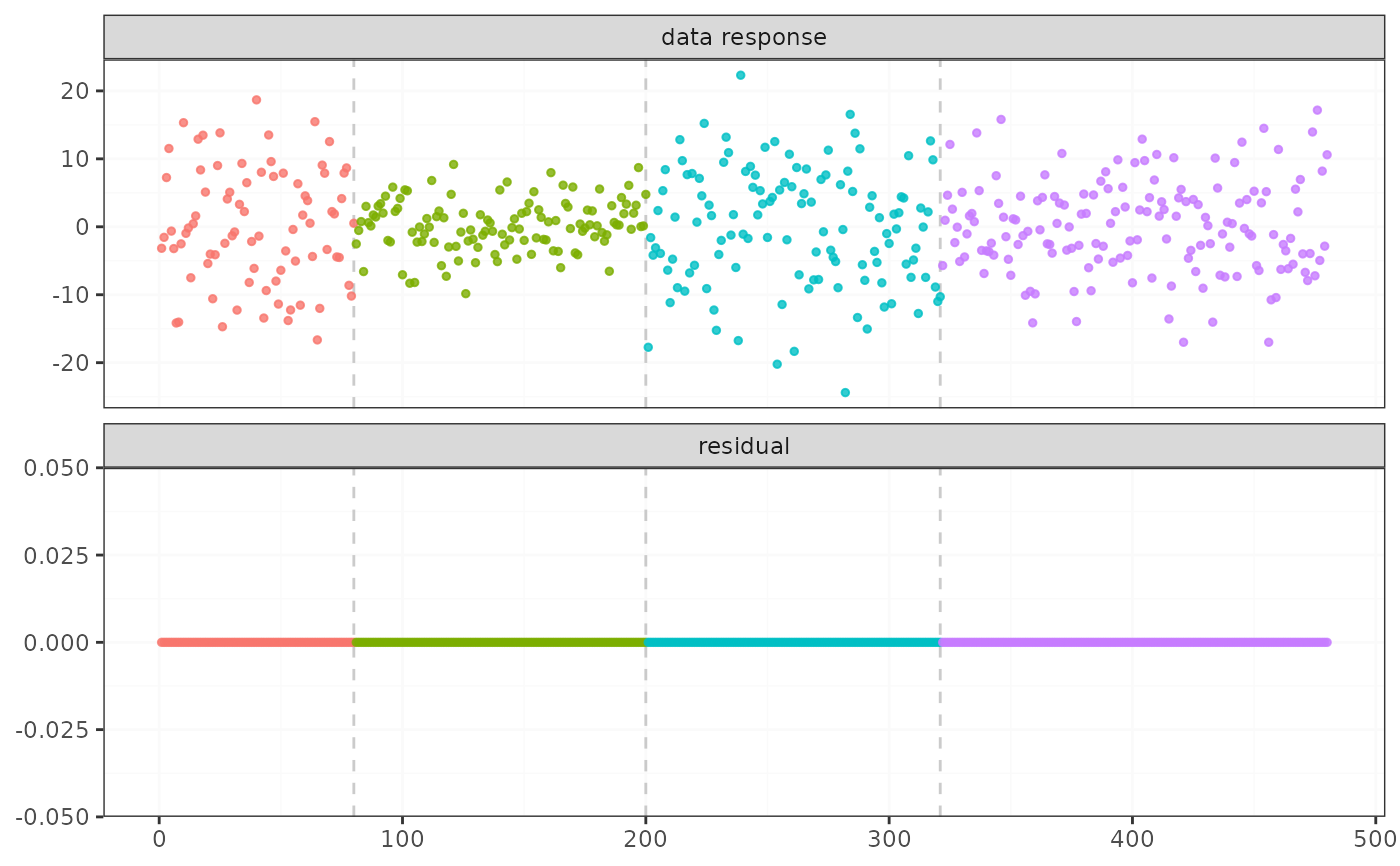

plot(result)
# Combine estimated thetas with true parameters
thetas <- result@thetas
thetas <- cbind.data.frame(thetas, t(theta_0))
names(thetas) <- c(
"segment 1", "segment 2", "segment 3", "segment 4",
"segment 1 truth", "segment 2 truth", "segment 3 truth", "segment 4 truth"
)
thetas$coordinate <- c(seq_len(p_true), rep("rest", p - p_true))
# Melt the data frame using base R (i.e., convert from wide to long format)
data_cols <- setdiff(names(thetas), "coordinate")
molten <- data.frame(
coordinate = rep(thetas$coordinate, times = length(data_cols)),
variable = rep(data_cols, each = nrow(thetas)),
value = as.vector(as.matrix(thetas[, data_cols]))
)
# Remove the "segment " and " truth" parts to extract the segment number
molten$segment <- gsub("segment ", "", molten$variable)
molten$segment <- gsub(" truth", "", molten$segment)
# Compute height: the numeric value of the segment plus an offset for truth values
molten$height <- as.numeric(gsub("segment.*", "", molten$segment)) +
0.2 * as.numeric(grepl("truth", molten$variable))
# Create a parameter indicator based on whether the variable corresponds to truth or estimation
molten$parameter <- ifelse(grepl("truth", molten$variable), "truth", "estimated")

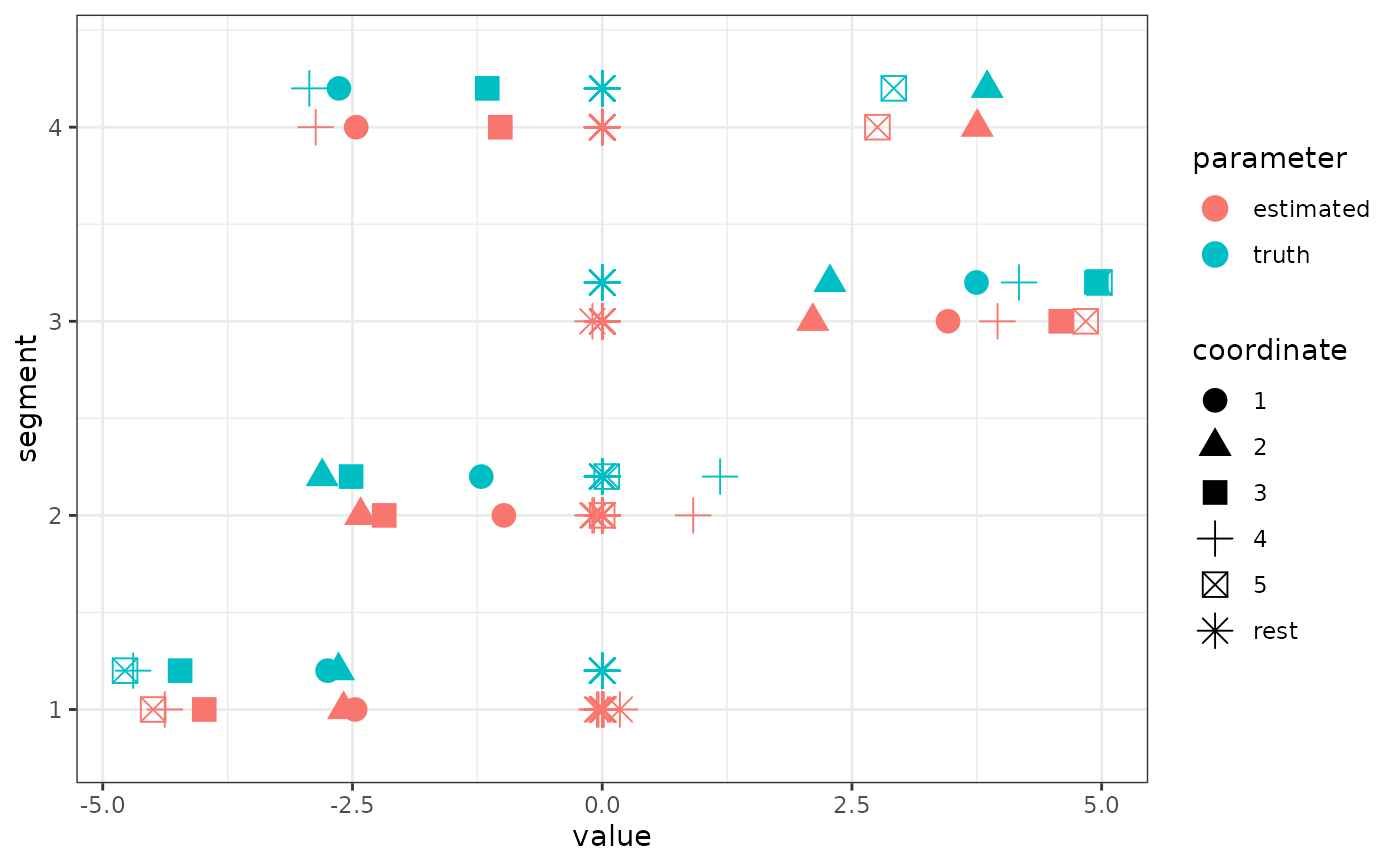

p <- ggplot2::ggplot() +
ggplot2::geom_point(
data = molten,
ggplot2::aes(
x = value, y = height, shape = coordinate, color = parameter
),
size = 4
) +
ggplot2::ylim(0.8, 4.4) +
ggplot2::ylab("segment") +
ggplot2::theme_bw()
print(p)
}
#>
#> Call:
#> detect_lasso(data = cbind(y, x), multiple_epochs = function(segment_length) if (segment_length <
#> 30) 1 else 0)
#>
#> Change points:
#> 80 200 321
#>
#> Cost values:
#> 191.8539 245.4502 242.25 282.737
#>
#> Parameters:
#> segment 1 segment 2 segment 3 segment 4
#> 1 -2.473168539 -0.98447207 3.46244792 -2.4626421537
#> 2 -2.588593610 -2.41828115 2.10848311 3.7541930968
#> 3 -3.983941649 -2.18197691 4.59036172 -1.0198868501
#> 4 -4.378913735 0.91071392 3.95765503 -2.8685363860
#> 5 -4.495473996 0.00000000 4.84060707 2.7550202120
#> 6 0.000000000 0.00000000 0.00000000 0.0000000000
#> 7 -0.053395310 0.00000000 0.00000000 0.0000000000
#> 8 0.000000000 0.00000000 0.00000000 0.0000000000
#> 9 0.000000000 0.00000000 0.00000000 0.0000000000
#> 10 0.000000000 0.00000000 0.00000000 0.0000000000
#> 11 0.000000000 0.00000000 0.00000000 0.0000000000
#> 12 0.000000000 0.00000000 0.00000000 0.0000000000
#> 13 0.000000000 0.00000000 0.00000000 0.0000000000
#> 14 0.000000000 0.00000000 0.00000000 0.0000000000
#> 15 0.000000000 0.00000000 0.00000000 0.0000000000
#> 16 0.000000000 0.00000000 0.00000000 0.0000000000
#> 17 0.000000000 0.00000000 0.00000000 0.0000000000
#> 18 0.000000000 0.00000000 0.00000000 0.0000000000
#> 19 0.000000000 0.00000000 0.00000000 0.0000000000
#> 20 0.000000000 0.00000000 0.00000000 0.0000000000
#> 21 0.000000000 0.00000000 0.00000000 0.0000000000
#> 22 0.015707059 0.00000000 -0.09845551 0.0000000000
#> 23 0.000000000 0.00000000 0.00000000 0.0000000000
#> 24 0.000000000 0.00000000 0.00000000 0.0000000000
#> 25 0.000000000 0.00000000 0.00000000 0.0000000000
#> 26 0.000000000 -0.09900977 0.00000000 0.0000000000
#> 27 0.000000000 0.00000000 0.00000000 0.0000000000
#> 28 0.000000000 0.00000000 0.00000000 0.0000000000
#> 29 0.000000000 0.00000000 0.00000000 0.0000000000
#> 30 0.000000000 0.00000000 0.00000000 0.0000000000
#> 31 0.000000000 0.00000000 0.00000000 0.0000000000
#> 32 0.000000000 0.00000000 0.00000000 0.0000000000
#> 33 0.177142836 0.00000000 0.00000000 0.0000000000
#> 34 0.000000000 0.00000000 0.00000000 0.0000000000
#> 35 0.000000000 0.00000000 0.00000000 0.0000000000
#> 36 0.005010027 0.00000000 0.00000000 -0.0002328763
#> 37 0.000000000 0.00000000 0.00000000 0.0000000000
#> 38 0.000000000 0.00000000 0.00000000 0.0000000000
#> 39 0.000000000 0.00000000 0.00000000 0.0000000000
#> 40 0.000000000 -0.08092709 0.00000000 0.0000000000
#> 41 0.000000000 0.00000000 0.00000000 0.0000000000
#> 42 0.000000000 0.00000000 0.00000000 0.0000000000
#> 43 0.000000000 0.00000000 0.00000000 0.0000000000
#> 44 0.000000000 0.00000000 0.00000000 0.0000000000
#> 45 -0.037051417 0.00000000 0.00000000 0.0000000000
#> 46 0.000000000 0.00000000 0.00000000 0.0000000000
#> 47 0.000000000 0.00000000 0.00000000 0.0000000000
#> 48 0.000000000 0.00000000 0.00000000 0.0000000000
#> 49 0.000000000 0.00000000 0.00000000 0.0000000000
#> 50 0.000000000 0.00000000 0.00000000 0.0000000000
# }
